Precision First: How We Use 3D Disto and Point Cloud Data to Build Accurate BIM Models

In today’s architectural workflows, accuracy is everything. Whether we’re documenting an existing building or preparing for a full-scale renovation, our team leverages advanced measurement tools and BIM technology to ensure each project begins with a solid foundation.

Step 1: On-Site Measurement with 3D Disto

Our team uses Leica 3D Disto Scanners for fast and precise point-to-point measurements. These tools are ideal for interior spaces, allowing us to:

• Capture linear and angular dimensions

• Measure ceiling heights and wall planes

• Digitally record window and door openings

• Transfer real-world geometry into digital environments

This process is particularly useful when producing accurate layouts for interiors, kitchens, joinery, and refurbishment projects — all without needing manual sketches or tape measures.

Step 2: Point Cloud Surveys from Trusted Partners

For projects requiring detailed 3D site representation, such as heritage buildings or complex geometries, we collaborate with specialist survey partners who provide high-density point cloud data using advanced 3D laser scanning technology.

These point cloud files (E57, RCP, etc.) are shared with us and integrated directly into Archicad and Revit, forming the basis for extremely accurate digital models that reflect every curve, surface, and deviation of the existing structure.

Step 3: Modeling in Archicad & Revit

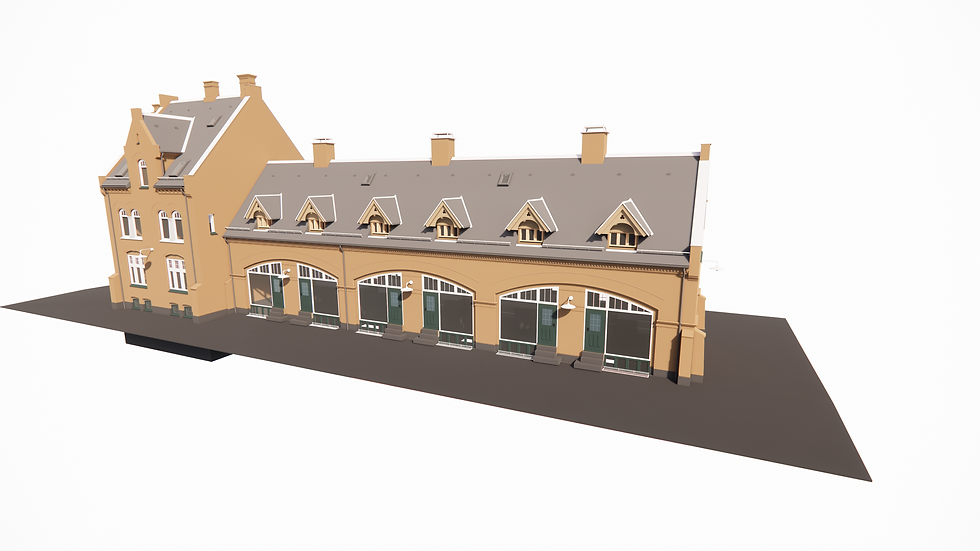

Whether we’ve captured data via 3D Disto or imported a point cloud from our partners, the next step is developing a detailed BIM model that meets the client’s objectives.

In both ArchiCAD and Revit, our team:

• Reconstructs geometry accurately from measurements

• Applies intelligent BIM components

• Ensures models are suitable for planning, coordination, or refurbishment

• Aligns geometry with client and consultant requirements

This flexible workflow allows us to scale depending on project size, detail level, and timeline.

Why This Matters

Combining on-site measurement tools with collaborative BIM modeling allows us to:

• Save time on site

• Reduce rework due to errors

• Improve coordination with engineers and consultants

• Deliver high-quality architectural models ready for development or construction

Let’s Collaborate

We work in both ArchiCAD and Revit, and we’re always open to partnering with architectural practices that need support with BIM modeling, site measurement, or developing models from external surveys.

Let’s connect and bring your next project to life — with accuracy from day one.
